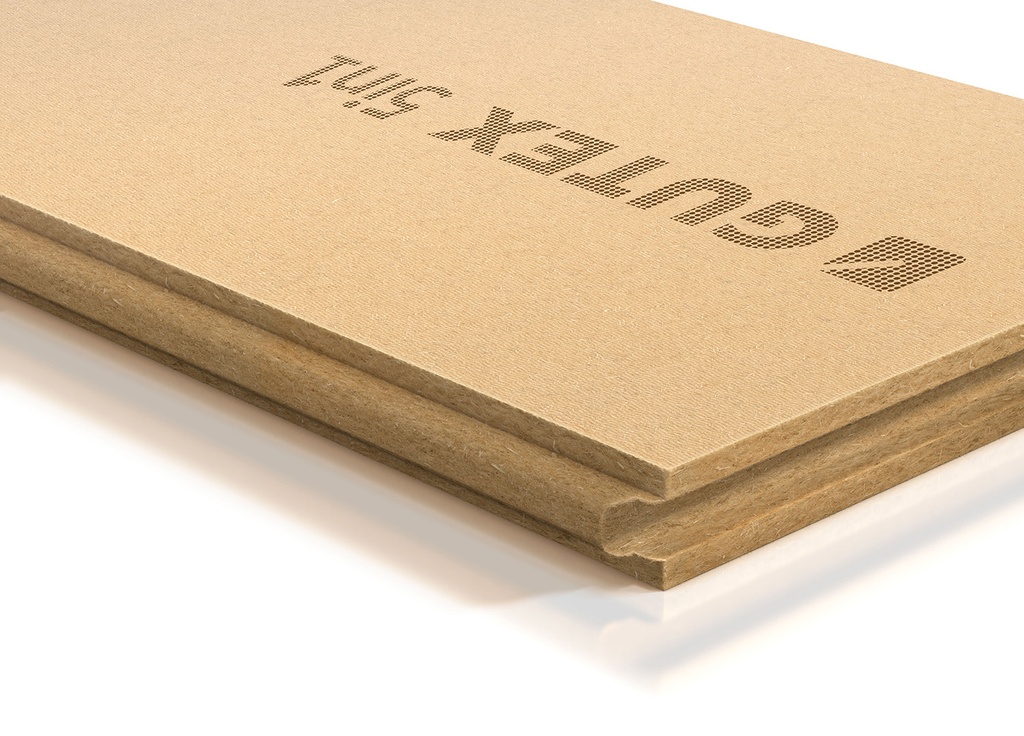

Thermowall 5in1 tongue and groove all round

GUTEX Thermowall 5in1 – the universal wood fibre insulation board

GUTEX Thermowall 5in1 is a versatile wood fibre insulation board developed to meet the highest demands of modern timber and solid construction. With just one product, you can cover five applications and benefit from maximum flexibility in planning, storage and processing.

5 applications – 1 board

1. Plaster base panel for Thermowall-ETICS
   – on timber frame constructions and solid timber elements without rear ventilation

2. External sheathing
   – directly on timber studs and solid timber behind the outer leaf of rear-ventilated façades

3. Rainproof underlay (UDP-A)
   – from 60 mm thickness

4. Internal insulation of the external wall
   – plasterable

5. Full-surface insulation layer for the installation level

Formats & variants

• Thicknesses: 40, 60, 80, 100, 120, 140, 160, 180 and 200 mm

• Formats:

  • 1,900 × 600 mm (rounded tongue and groove, all thicknesses)

  • 2.550 × 600 mm (60, 80, 100 mm)

  • 3,000 × 1,250 mm, square-edged (60 mm)

  • 3,000 × 2,500 mm and 6,000 × 2,500 mm, square-edged (60 mm)

• Approved uses:

  • Blown-in insulation: 60–200 mm

  • ETICS: 60–160 mm
