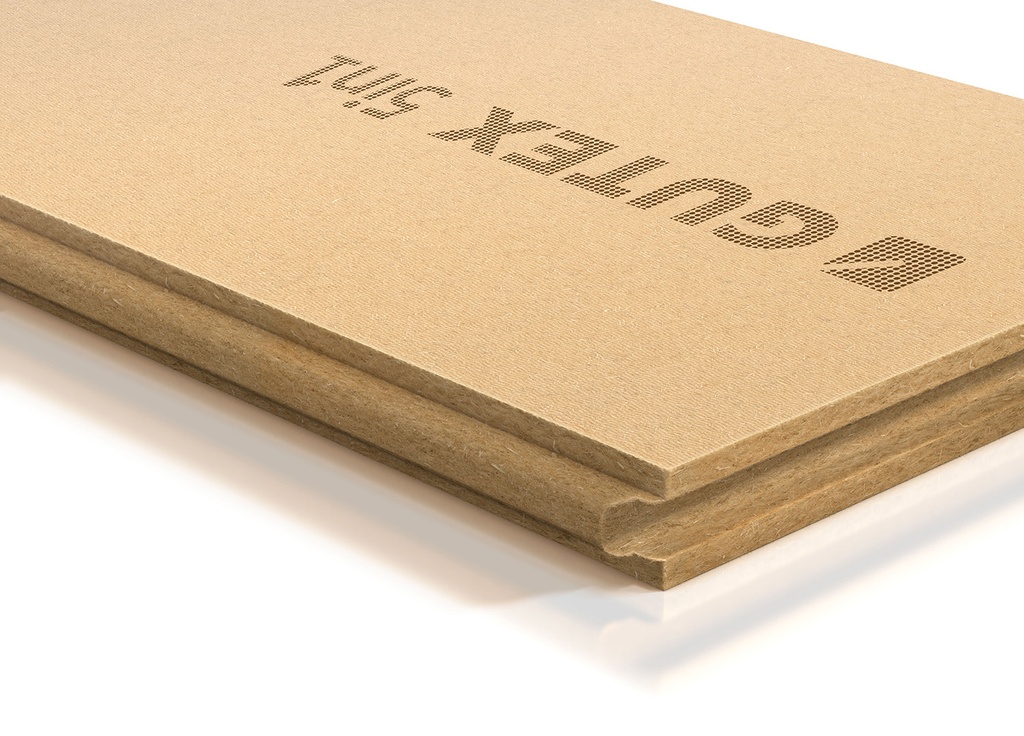

Multifunctional wood fibre insulation board for five applications: ETICS, exterior cladding, rainproof underlay, interior insulation and installation level. Certified by natureplus® and ‘Made in the Black Forest’.
Width 60 cm, tongue and groove all round

Assembly bit for inserting screw anchors

Impact sound improvement of up to 30 dB depending on the floor structure
6 mm thick
86 x 59 cm = 0.5 m² per panel
Weight per panel 0.8 kg
Surface weight 1.6 kg/m²
Simply cut to size with a cutter, as an intermediate layer under e.g. parquet, on concrete, screed, wooden floors, installation planks or screed elements

Moisture-regulating, open to vapour diffusion, additional thermal insulation, quick installation.

Wood fibre insulation board for external insulation (ETICS) on solid wood or mineral substrates and in timber frame construction - without rear ventilation.
Bulk density p: ~160 kg/m³
Nominal value thermal conductivity at 80 - 160 mm 0.040 W/mK
Compressive stress/strength 100 kPa
Tensile strength perpendicular to the board plane 10 kPa
Edge formation tongue and groove
1,3 / 0,60 m

0.77 m² per panel
Board size 135 x 57.5 cm
best wood fibre insulation mat for insulating roofs, partition walls, ceiling insulation or exterior walls
Nominal value thermal conductivity λD 0.036 W/mK
Bulk density ρ ~ 50 kg/m³
Easy to cut, low-dust, strong clamping force

Wood fibre insulation board for external insulation (ETICS) on solid wood or mineral substrates and in timber frame construction - without rear ventilation.
Bulk density p: ~160 kg/m³
Nominal value thermal conductivity at 80 - 160 mm 0.040 W/mK
Compressive stress/strength 100 kPa
Tensile strength perpendicular to the board plane 10 kPa
Edge formation tongue and groove
1,3 / 0,60 m

Sealant in cartridges for filling the installation joints of the GUTEX Thermowall and GUTEX Thermowall-gf plaster base boards.

Thermo screw anchor 8 mm, for fastening GUTEX insulation boards in concrete, bricks, solid sand-lime bricks, hollow blocks made of lightweight concrete, perforated and hollow-hole bricks, aerated concrete. Impact depth at least 25 mm in load-bearing substrate.

To reduce thermal bridges.

Impregnated, pre-compressed sealing tape for creating driving-rain-proof and windproof junctions in conjunction with the Thermowall external thermal insulation composite system.

GUTEX Sockelanstrich is a modified synthetic resin dispersion primer
Binder: carbonates, inorganic fillers
Thinner: water
Application:
– to protect against excessive moisture ingress in the splash-water zone
– for coating over the reinforcement layer in the splash-water zone
Area of application: exterior
Consumption: 0.5 kg/m² depending on the substrate

Universal wood fibre insulation board for roofs, façades and intermediate floors
1300 x 600 mm = 0.78 m² / board or 1900 x 600 mm (tongue + groove) = 1.14 m² / board

0.77 m² per panel
Board size 135 x 57.5 cm
best wood fibre insulation mat for insulating roofs, partition walls, ceiling insulation or exterior walls
Nominal value thermal conductivity λD 0.036 W/mK
Bulk density ρ ~ 50 kg/m³
Easy to cut, low-dust, strong clamping force

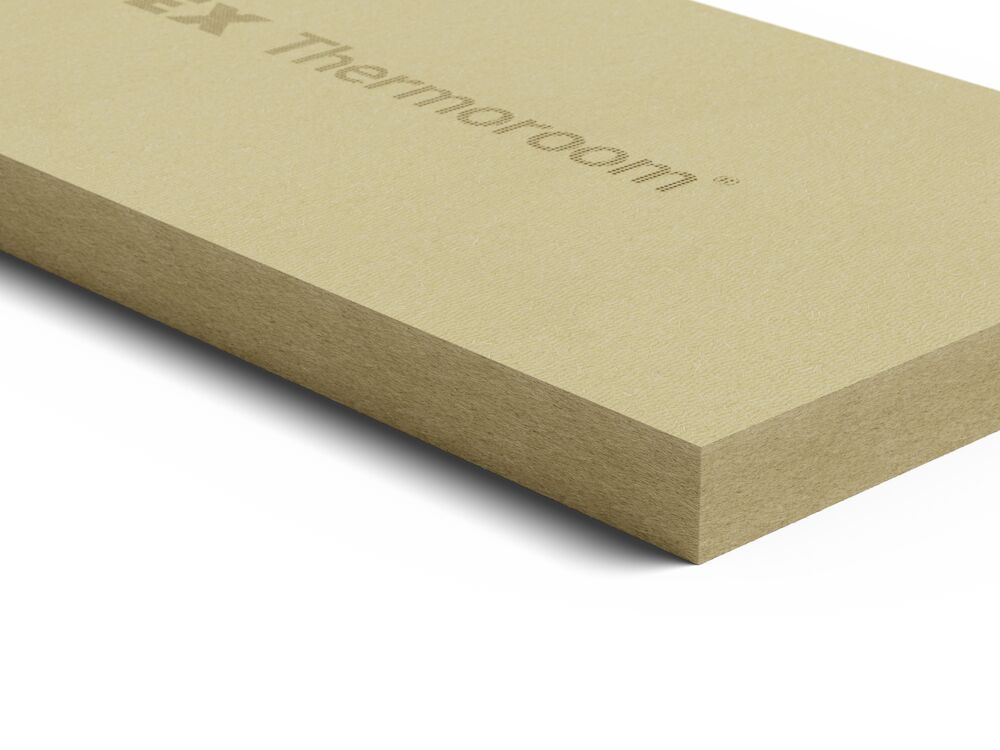

Wood fibre insulation board for internal insulation of external walls.
Bulk density p: ~130 kg/m³
Nominal thermal conductivity at 40 - 100 mm 0.039 W/mK
Compressive stress/strength >50 kPa
Tensile strength perpendicular to the board plane > 7.5 kPa
1300 / 600 mm = 0.78 m² /board

1200 x 400 mm
20 mm = 14 Stück / Paket (VE)
30 mm = 12 Stück / Paket (VE)
40 mm = 7 Stück / Paket (VE)

GUTEX Thermowall-gf is a particularly pressure-resistant, stable plasterable insulation board in 40 or 60 mm thickness – ideal for direct planking on wooden studs in Thermowall ETICS.
The 40 mm tongue and groove version is ideal for constructing interior walls. Plaster can be applied directly.
Bulk density p: ~185 kg/m³
Nominal thermal conductivity 0.043 W/mK
Compressive stress/strength 150 kPa
Tensile strength perpendicular to the board plane 20 kPa

Impact sound insulation board for use in combination with spruce installation strips, as a substructure for screwed floorboards or parquet flooring. Board 1190x380x40 (cover dimension: 1170x360)

GUTEX Thermofloor is the impact sound insulation board for all floor structures with a live load of up to 5 kN/m². Board 1200x600, butt joint

0.77 m² per panel
Board size 135 x 57.5 cm
best wood fibre insulation mat for insulating roofs, partition walls, ceiling insulation or exterior walls
Nominal value thermal conductivity λD 0.036 W/mK
Bulk density ρ ~ 50 kg/m³
Easy to cut, low-dust, strong clamping force

Pressure-resistant wood fiber insulation board for interior floor and wall structures, insulation of the upper floor ceiling. Compressive strength >150 kPa. 1300 x 600 mm

Thermal-bridge-free reveal anchor for use in window reveals and similar connection areas. Suitable for 20 and 40 mm board thickness, Ø 8 mm, length 80 mm. Installed with assembly tool S1 (Art. 40655) or bit S1 (Art. 40656). Supplied in full cartons only (100 pcs).
