Glassfiber mesh

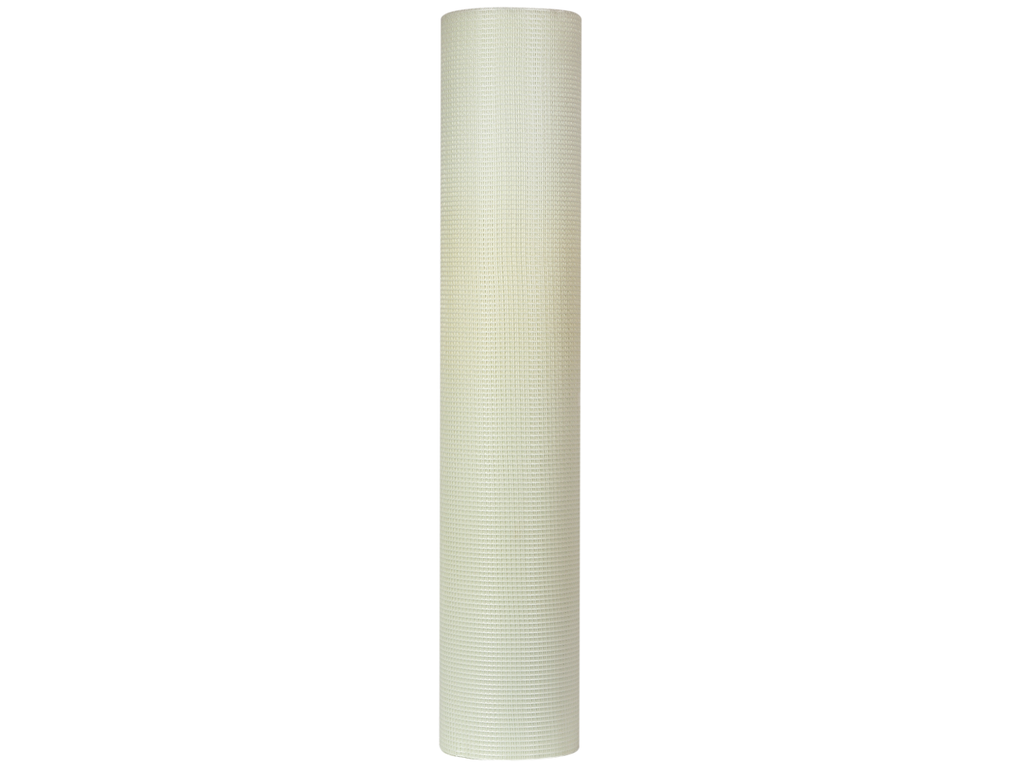

Claytec glass fibre mesh

Surface reinforcement for clay adhesive and reinforcing mortars and all clay plasters. CLAYTEC glass fabric is a leno-weave fabric made of glass filament yarn/roving, finished with a polymer coating. It has high tensile strength, is very fine and is particularly easy to work with.

Technical data

• Application: As surface reinforcement for clay plasters, wood fibre internal insulation, linings made of clay building boards and wood fibre interior boards, and sheathing made of clay building boards, clay-hemp boards and wood fibre interior boards.
• Composition: leno-weave fabric made of glass-fibre yarn/roving, finished with a polymer coating for mesh fabrics.
• Weight: approx. 65g/m2,
• Warp/weft: approx. 16/16 threads per 10 cm
• Mesh size: approx. 5.5 x 5.5 mm.
• Supplied as: roll, width 100 cm, length 100 m (35.010), length 35 m (35.013)
• Storage: Can be stored for at least three years in a dry, well-ventilated place protected from direct sunlight.
• Material requirement: per m2 of plaster surface plus 10% to 20% reserve for offcuts and overlaps.
• Application: The mesh is laid onto the freshly applied, still plastic mortar and rubbed in with a felt float. The overlap at the joints must be approx. 10 cm. (For linings made of clay building boards, clay-hemp boards and wood-fibre interior boards, the mesh is generally embedded over the full surface in clay adhesive and reinforcing mortar.)
