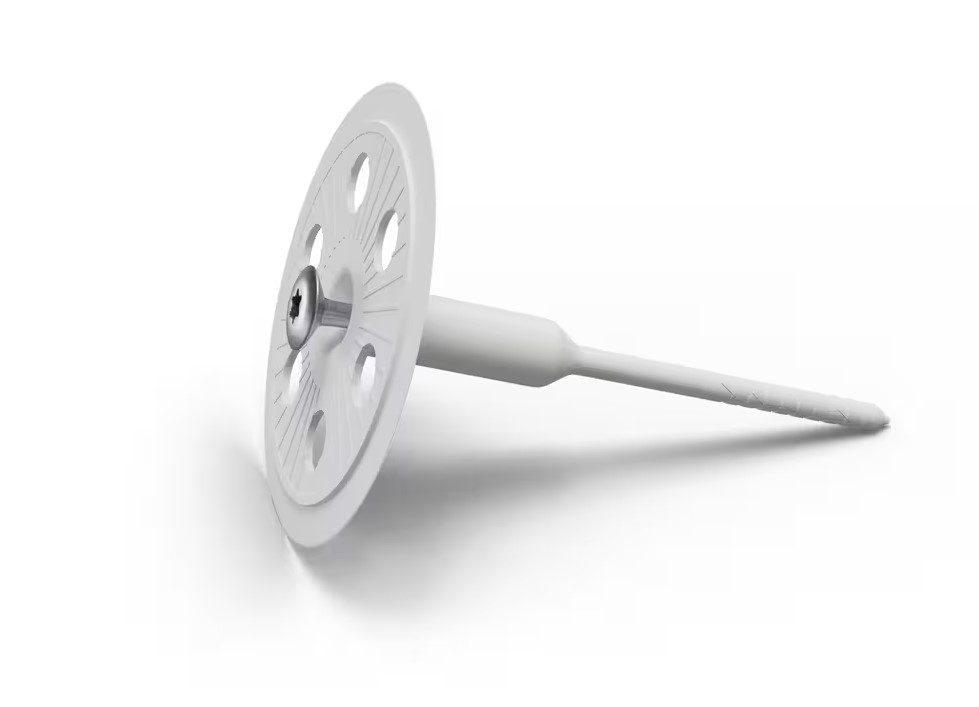

Reveal dowel S1

100 pieces / box

Thermal-bridge-free reveal anchor for use in window reveals and similar connection areas. Suitable for 20 and 40 mm board thickness, Ø 8 mm, length 80 mm. Installed with assembly tool S1 (Art. 40655) or bit S1 (Art. 40656). Supplied in full cartons only (100 pcs).

71.58 € 71.58 EUR 71.58 €

0.00 €

(0.00 € / 100 pieces / box)


    We have not provided a data sheet for this product

    * all prices incl. VAT, excl. Shipping costs (these are displayed in the shopping basket).

    Thermal-bridge-free fixing for window reveals

    The Gutex S1 reveal anchor prevents thermal bridges at the junctions of window reveals and comparable detail points of the Thermowall and Thermowall-gf external thermal insulation composite systems. The anchor is screwed through the insulation board and finishes flush with the surface.

    • Suitable for board thicknesses of 20 and 40 mm
    • Diameter Ø 8 mm, length 80 mm
    • Plastic construction free of thermal bridges
    • Installation with installation tool S1 (Art. 40655) or bit S1 (Art. 40656)
    • Supplied only in full cartons of 100 pieces

    Suitable for all Gutex ETICS systems in the window reveal area.
