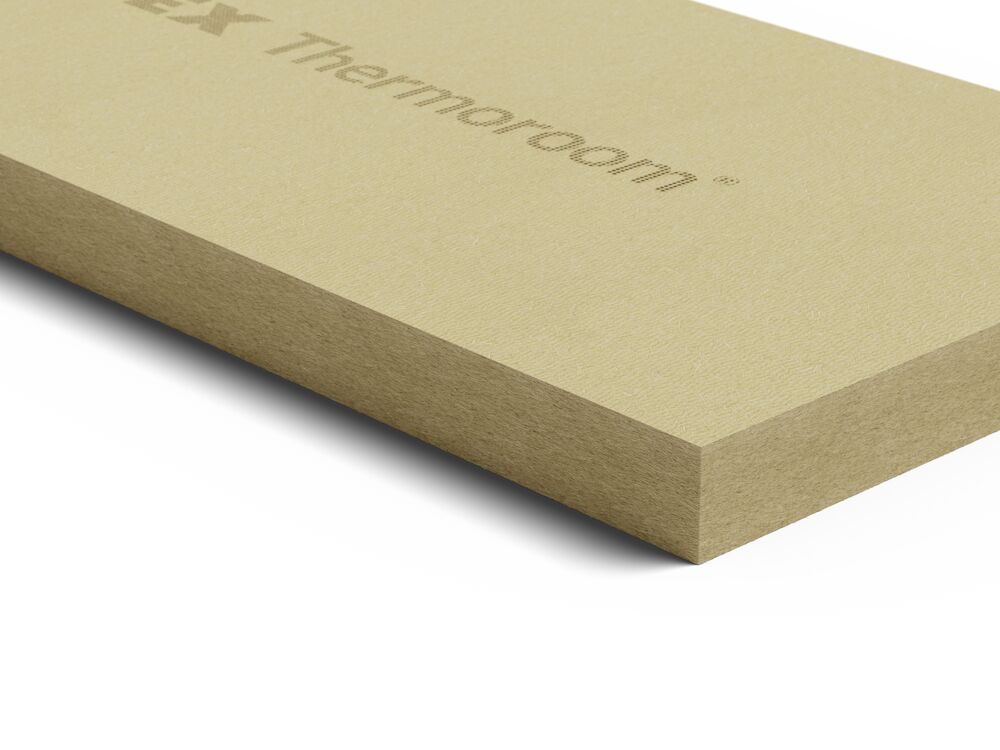

TThermoroom Wood fibre insulation boards
Wood fibre insulation board for internal insulation of external walls.
Bulk density p: ~130 kg/m³
Nominal thermal conductivity at 40 - 100 mm 0.039 W/mK
Compressive stress/strength >50 kPa
Tensile strength perpendicular to the board plane > 7.5 kPa
1300 / 600 mm = 0.78 m² /board
Holzweichfaser kommt aus dem Schwarzwald
The Thermoroom internal insulation boards from Gutex provide excellent thermal protection for your renovation. The Gutex boards offer many advantages:
- höchsten SD-Wert bei Holzweichfaserplatten
- keine Lagenverklebung - dadurch höhere Zugfestigkeit
- approved for overhead plastering
- suitable for lime and clay plaster
- handliches und effizientes Format
- einschichtiger homogener Aufbau
- geringster Zuschlag an Klebstoffen im Vergleich zu Konkurrenzprodukten
- Kantenausbildung stumpf
Inhaltsstoffe
- unbehandeltes Tannen- und Fichtenholz aus dem Schwarzwald
- 4,0 % PUR-Harz
Interior insulation is installed from the room side and is used above all when external insulation is not possible or not wanted, for example on listed façades, half-timbered houses or in large projects where energy-efficient refurbishment is carried out in several stages.
Gutex Thermoroom is made of wood fibre, is vapour-permeable and regulates moisture. This contributes to a balanced indoor climate and reduces the risk of mould, while the insulation also provides good protection against cold and summer heat.
In direct comparison with other wood fibre insulation boards, the Gutex board is significantly more homogeneous and closer to pure wood fibre because it contains less adhesive. The Gutex Thermoroom is a homogeneous board, with no glued layers as found with other manufacturers.
The optimum insulation thickness depends on the building, the wall thickness and the energy requirements. Typical thicknesses are between 60 and 100 mm Gutex Thermoroom. Our advisory service will help you choose the right one.
In timber-frame buildings the insulation should not go beyond a U-value of 0.45 W/m²K. This corresponds to 60 mm Gutex Thermoroom. Thicker insulation is possible in individual cases, but should then be agreed with a building physicist and energy consultant.
In solid masonry buildings greater insulation thicknesses are generally possible; 80 mm Gutex Thermoroom is well suited for cavity masonry.
Yes. Thermoroom is vapour-permeable and capillary-active. This means that moisture can be absorbed and released again. This makes the system particularly suitable for timber-framed and listed buildings.
The boards are bonded directly to the interior wall using the thin-bed method with a special clay or lime adhesive. This is followed by a plaster build-up of clay or lime. A wall heating system can be integrated into the plaster very effectively.
The Hessler HP 14 or the Conluto clay adhesive and reinforcing mortar sind unsere Favoriten
