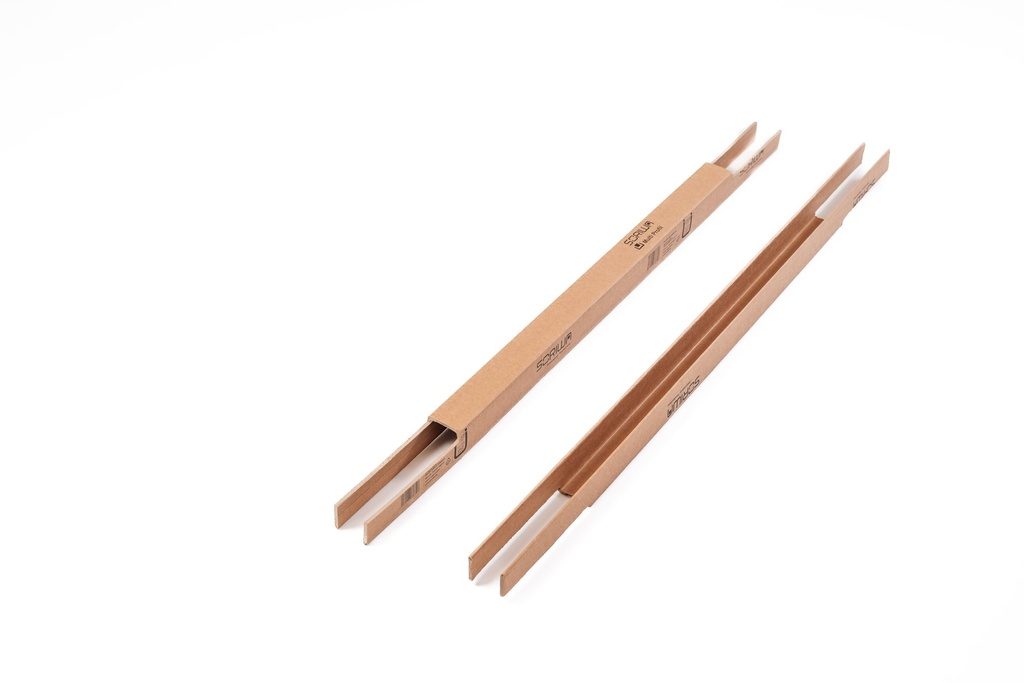

Lintel
The SORIWA Lintel is a prefabricated component made from 87.9% recycled fibre pulp, extending the SORIWA Multi-System with a functionally tailored solution for doorways. Thanks to side openings, it can be used flexibly for three standard door widths. Combined with the SORIWA Multi Profile and the SORIWA Core, it enables fast, system-compatible and completely steel-free construction of door openings in drywall.
The SORIWA Türsturz door lintel is a prefabricated element made from 87.9 % recycled cellulose fibre and extends the SORIWA Multi system with a functionally matched solution for the door area. Thanks to lateral openings, the lintel can be used flexibly for three standard door widths. In combination with the SORIWA Multi Profil and the SORIWA Kern, it enables fast, system-compliant and completely steel-free construction of door openings in drywall construction.
Your benefits at a glance
- Prefabricated and ready to install
- Adjustable to three door widths
- Safe handling, no sharp edges
Area of application
in the area of door openings in combination with the SORIWA Multi Profil and the SORIWA Kern
Area of application
In the area of door openings within non-load-bearing interior walls of drywall construction under the climatic conditions of service classes 1 and 2 in accordance with DIN EN 1995-1-4.
Wall properties (SORIWA Multi-System)
Fire performance: EI30 and EI60*
Sound insulation: up to 44.2 dB with single and 52.3 dB with double boarding*
Structural stability: tested and passed
Bracket loads: 0.4–0.7 kN/m (≈ 40–70 kg/m)
*various wall constructions tested; values apply when the exact construction method is followed
