Wood fibre insulation board for interior insulation of exterior walls.
Bulk density p: ~130 kg/m³
Nominal value thermal conductivity at 40 - 100 mm 0.039 W/mK
Compressive stress/strength >50 kPa
Tensile strength perpendicular to the board plane > 7.5 kPa
Blunt edge formation
1200 / 500 mm

Lighter plaster base board with high insulation performance for the Thermowall ETICS
Blunt edge
0.48 m² per board
Areas of application: full-surface mineral or solid wood substrates

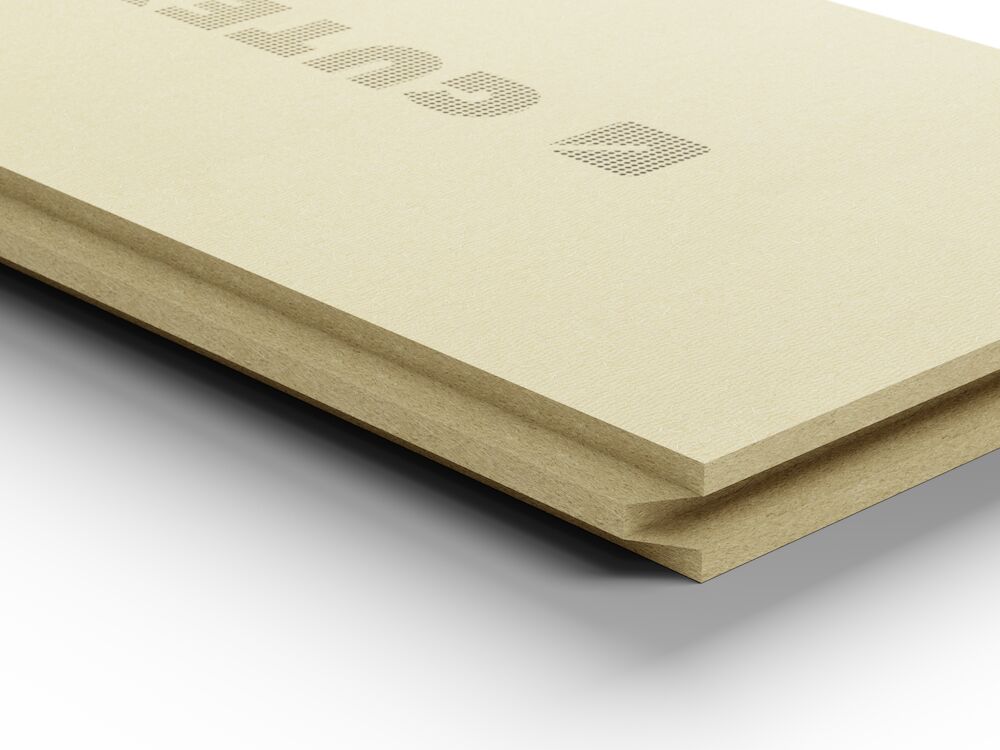

GUTEX Thermowall-gf is a particularly pressure-resistant, stable plasterable insulation board in 40 or 60 mm thickness – ideal for direct planking on wooden studs in ecological Thermowall ETICS.
The 40 mm tongue and groove version is ideal for constructing interior walls. Plaster can be applied directly.
Bulk density p: ~185 kg/m³
Nominal thermal conductivity 0.043 W/mK
Compressive stress/strength 150 kPa
Tensile strength perpendicular to the board plane 20 kPa

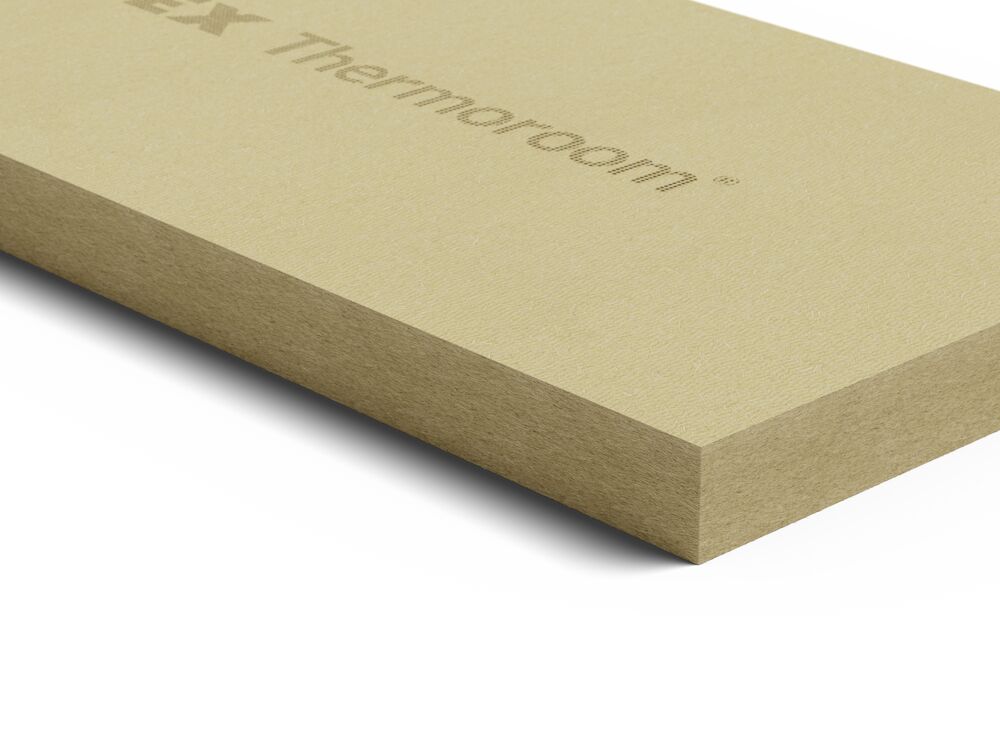

Wood fibre insulation board for internal insulation of external walls.
Bulk density p: ~130 kg/m³
Nominal thermal conductivity at 40 - 100 mm 0.039 W/mK
Compressive stress/strength >50 kPa
Tensile strength perpendicular to the board plane > 7.5 kPa
1300 / 600 mm = 0.78 m² /board

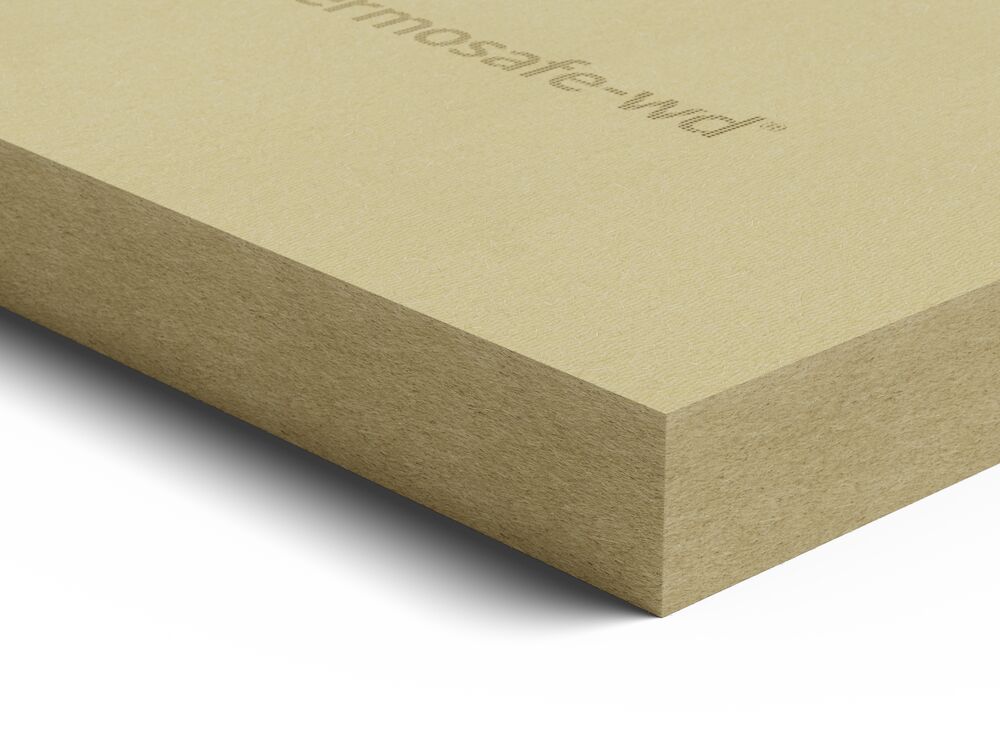

Wood fibre insulation board for external insulation (ETICS) on solid wood or mineral substrates and in timber frame construction - without rear ventilation.
Bulk density p: ~160 kg/m³
Nominal value thermal conductivity at 80 - 160 mm 0.040 W/mK
Compressive stress/strength 100 kPa
Tensile strength perpendicular to the board plane 10 kPa

Pressure-resistant wood fiber insulation board for interior floor and wall structures, insulation of the upper floor ceiling. Compressive strength >150 kPa. 1250 x 600 mm
